Pitteri Violini S.p.A. distribuisce la gamma di componenti oleodinamici METARIS,
produttore riconosciuto a livello mondiale nel settore della trasmissione di potenza di alta qualita'.
L'impegno di METARIS per la qualita', la consegna e la soddisfazione del cliente ne fanno il fornitore preferito
per pompe idrauliche (pistone, palette, ingranaggi) e prodotti Power Take Off.
Cerca Video Pompe a Pistoni METARIS con lo Strumento Video Tool

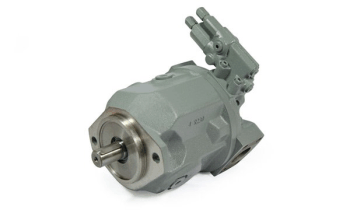

MA10V Series 31
| CARATTERISTICHE TECNICHE | MA10VO-18 | MA10VO-28 | MA10VO-45 | MA10VO-71 | MA10VO-100 | MA10VO-140 |
|---|---|---|---|---|---|---|
| Displacement Range(in³/cm³) | 1.10 / 18 | 1.71 / 28 | 2.75 / 45 | 4.33 / 71 | 6.10 / 100 | 8.54 / 140 |
| Max RPM | 3000 | 3000 | 2600 | 2200 | 2000 | 1800 |
| Flow at 1800 RPM(gpm/lpm) | 8.5 / 32 | 13 / 50 | 21 / 81 | 33.5 / 127 | 47.5 / 179 | 66.5 / 251 |
| Max Pressure (psi) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
|
Multiple displacements and options available: Single and Through-drive shaft models Low operating noise level Multiple drive shaft options SAE and metric flange options Direct replacements for Rexroth® A10VO series |
||||||
Per maggiori e dettagliate informazioni, vi preghiamo di contattare il Ns. personale Tecnico.

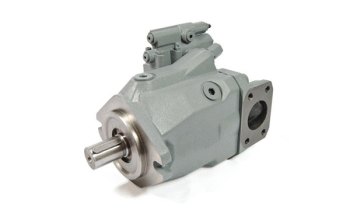

MA10V Series 52
| CARATTERISTICHE TECNICHE | MA10VO-45 | MA10VO-60 | |||
|---|---|---|---|---|---|
| Displacement Range(in³/cm³) | 2.75 / 45 | 3.66 / 60 | |||
| Max RPM | 2600 | 2700 | |||
| Flow at 1800 RPM(gpm/lpm) | 21 / 81 | 28.3 / 107 | |||
| Max Pressure (psi) | 3600 | 3600 | |||
|
Multiple displacements and options available: Single and Through-drive shaft models Low operating noise level Multiple drive shaft options SAE and metric flange options Direct replacements for Rexroth® A10VO series |
|||||
Per maggiori e dettagliate informazioni, vi preghiamo di contattare il Ns. personale Tecnico.
PVH Series
| CARATTERISTICHE TECNICHE | MPVH57 | MPVH74 | MPVH98 | MPVH131 | |
|---|---|---|---|---|---|
| Displacement Range(in³/cm³) | 3.47 / 57 | 4.5 / 74 | 5.9 / 985 | 8.0 / 131 | |
| Max RPM | 2400 | 2200 | 2100 | 2000 | |
| Flow at 1800 RPM(gpm/lpm) | 27 / 102 | 35 / 132 | 46 / 176 | 59 / 223 | |
| Max Pressure (psi) | 3600 | 3600 | 3600 | 3600 | |
|
High flow, high performance pumps for mobile applications Heavy duty, compact housings Engineered for long service life Versatile designs - single pumps, thru-drive pumps Multiple drive shaft options and control options Heavy duty bearings and shafts Interchangeable with Vickers® PVH series |
|||||
Per maggiori e dettagliate informazioni, vi preghiamo di contattare il Ns. personale Tecnico.

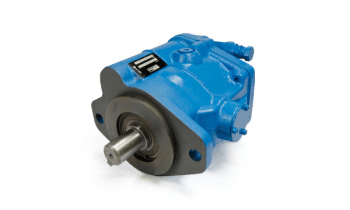

MHPVB Series
| CARATTERISTICHE TECNICHE | MHPVB5 | MHPVB6 | MHPVB10 | MHPVB15 | MHPVB20 | MHPVB29 |
|---|---|---|---|---|---|---|
| Displacement Range(in³/cm³) | 643 / 10.5 | 843 / 13.8 | 1.29 / 21.2 | 2.01 / 33 | 2.61 / 42.8 | 3.76 / 61.7 |
| Max RPM | 3600 | 3200 | 3200 | 3000 | 2400 | 2400 |
| Flow at 1800 RPM(gpm/lpm) | 5 / 19 | 35 / 132 | 10 / 37.8 | 15.7 / 59.4 | 20 / 75.7 | 29 / 109.7 |
| Max Pressure (psi) | 3000 | 2000 | 3000 | 2000 | 3000 | 2000 |
|
High flow, high performance pumps for industrial applications Heavy duty, compact housings Engineered for long service life High performance, highly efficient with a variety of hydraulic fluids Versatile designs - single pumps, thru-drive pumps Multiple drive shaft options and control options Heavy duty bearings and shafts Interchangeable with Vickers® PVB series |
||||||
Per maggiori e dettagliate informazioni, vi preghiamo di contattare il Ns. personale Tecnico.

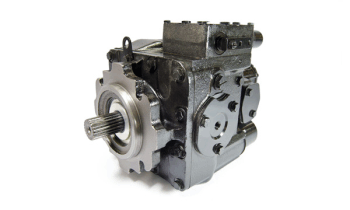

20 series (PV)
| CARATTERISTICHE TECNICHE | PV-20 | PV-21 | PV-22 | PV-23 | PV-24 | PV-25 | PV-26 | PV-27 |
|---|---|---|---|---|---|---|---|---|
| Displacement Range (in³/cm³) | 2.03 / 33.3 | 3.15 / 51.6 | 4.26 / 69.8 | 5.43 / 89.0 | 7.24 / 118.7 | 10.12 / 165.8 | 13.87 / 227.3 | 20.36 / 333.7 |
| Max RPM | 500 / 3800 | 500 / 3500 | 500 / 3200 | 500 / 2900 | 500 / 2700 | 500 / 2400 | 500 / 2100 | 500 / 1900 |
| Max Torque* (KG•M²•10-³ / LBF•FT²•10-³) |
4.34 / 103.0 | 8.14 / 193.2 | 12.34 / 292.8 | 17.77 / 421.7 | 29.11 / 690.8 | 50.19 / 1191.0 | 86.80 / 2059.8 | 161.40 / 3830.0 |
|
Designed for High Efficiency Output: Suitable for a variety of applications Multiple displacements and options available 8 different frame sizes Engineered to provide a long service life and reliability Multiple drive shaft options and control options Heavy duty bearings and shafts Easily serviceable Replacement parts also available Direct replacements for Sauer-Sundstrand® 20 series |
||||||||
Per maggiori e dettagliate informazioni, vi preghiamo di contattare il Ns. personale Tecnico.
